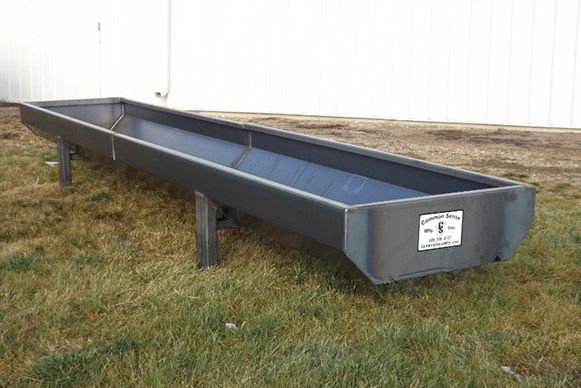

45"x20' Panbunk

This panbunk is made for larger animals. Calves should be at least 650lbs Our panbunks are designed with efficiency and convenience in mind with a 45 degree taper and lip formed inside the pan bunk to eliminate waste. The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.

Dimensions: 45" wide x 14" deep x 20' long  Height 28"
Net Weight:850 lbs.
Warranty:1 year
Features & Benefits:45 degree taper and lip formed inside to eliminate waste
Specs:10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom

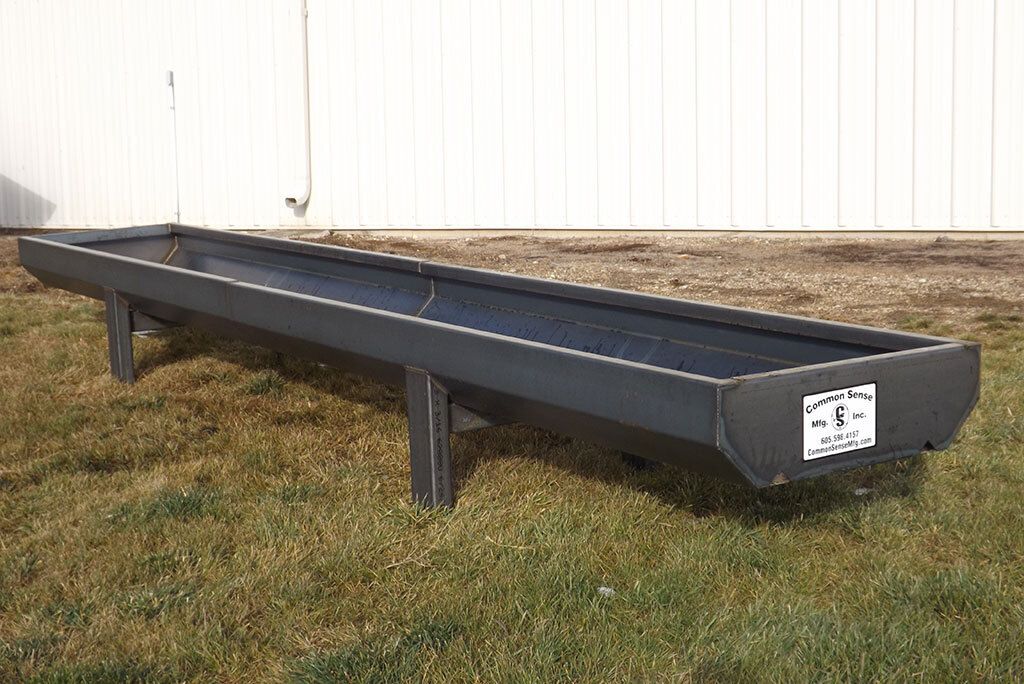

37"x20' Panbunk

This panbunk is made for larger animals. Calves should be at least 650lbs Our panbunks are designed with efficiency and convenience in mind with a 45 degree taper and lip formed inside the pan bunk to eliminate waste. The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps.

Dimensions: 37" wide x 14" deep x 20' long  Height 28"
Net Weight:850 lbs.
Warranty:1 year
Features & Benefits:45 degree taper and lip formed inside to eliminate waste
Specs:10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom

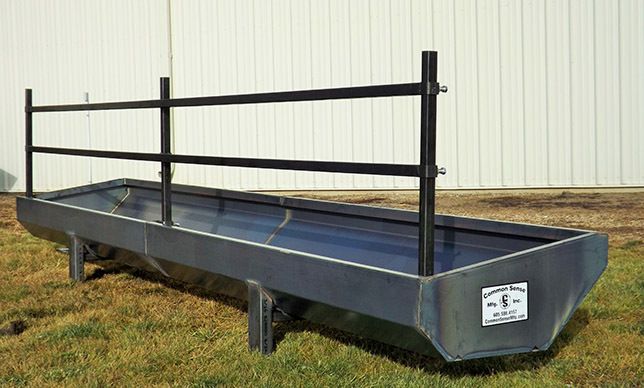

42"x20' Fenceline Panbunk

This panbunk is designed with efficiency and convenience in mind. It has a 45 degree taper and lip formed inside the pan bunk to eliminate waste. The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps. It comes with adjustable vertical and horizontal bars, making them versatile for feeding both large and small animals.

Dimensions:42" wide x 14" deep x 20' long. Front side height 26"; Back side 28"
Net Weight:900 lbs.
Warranty:1 year
Features & Benefits:3 adjustable vertical bars & 2 adjustable horizontal bars
Specs:10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom

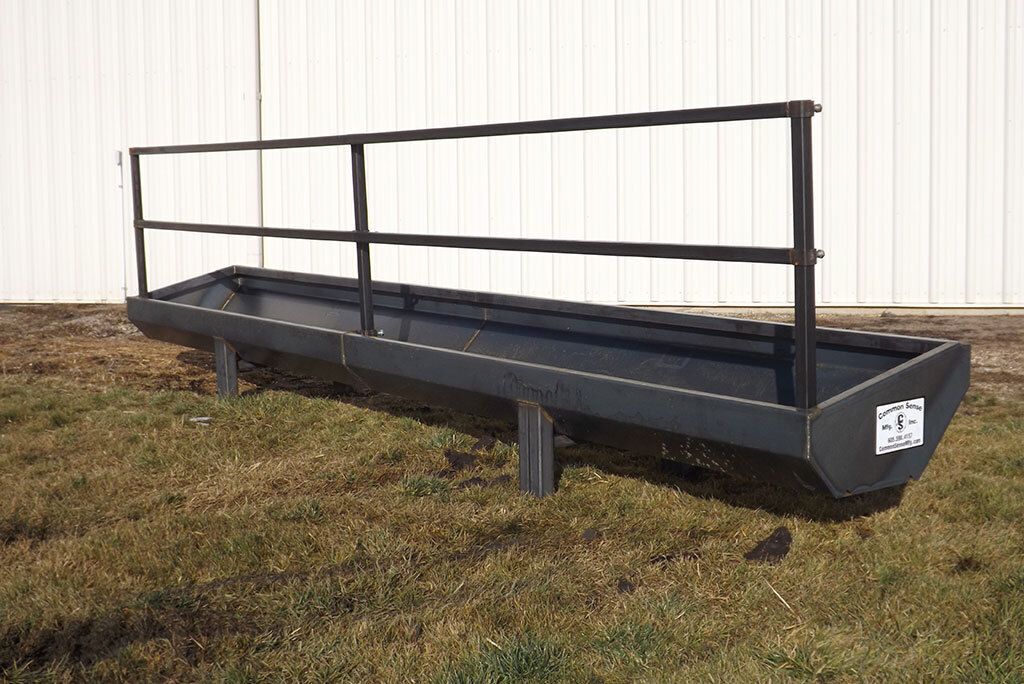

33"x20' Fenceline Panbunk

This panbunk is designed with efficiency and convenience in mind. It has a 45 degree taper and lip formed inside the pan bunk to eliminate waste. The legs are welded on bottom of the bunk so that the sides are smooth, eliminating bruised shoulders on livestock and broken tractor steps. It comes with adjustable vertical and horizontal bars, making them versatile for feeding both large and small animals.

Dimensions:33" wide x 14" deep x 20' long. Front side height 26"; Back side 28"
Net Weight:900 lbs.
Warranty:1 year
Features & Benefits:3 adjustable vertical bars & 2 adjustable horizontal bars
Specs:10 guage sheets; legs are 6" x3" x 3/16" with a plug in the bottom

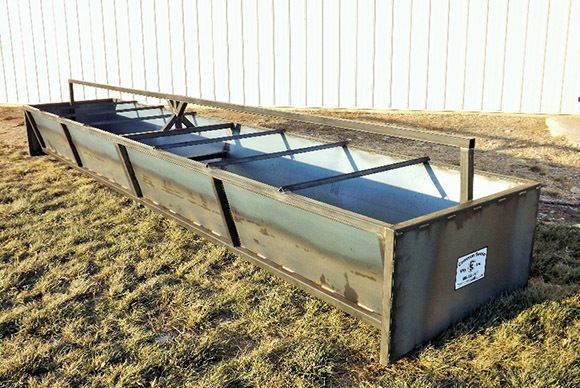

4'x20' Bottomless Feedbunk

Like our other products, this feed bunk is very heavy duty. It also has a much larger capacity than most bunks and works great for high roughage rations and bale processors. This size bunk works well with cows, bulls and other large animals. Per SDSU recommendations, this bunk is rated for 18-20 head. Also best to have animals be at least 750lbs You can move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling). It is designed with a tapered toe kick to reduce aggression. Cross bars add strength and help prevent cows from being pushed into the bunk.

Dimensions:4' wide x 26" high x 20' long Also available in 10' long
Net Weight:1000 lbs.
Workmanship Warranty:1 year
Featuers & Benefits:Tapered toe kick reduces aggression
Specs:Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron

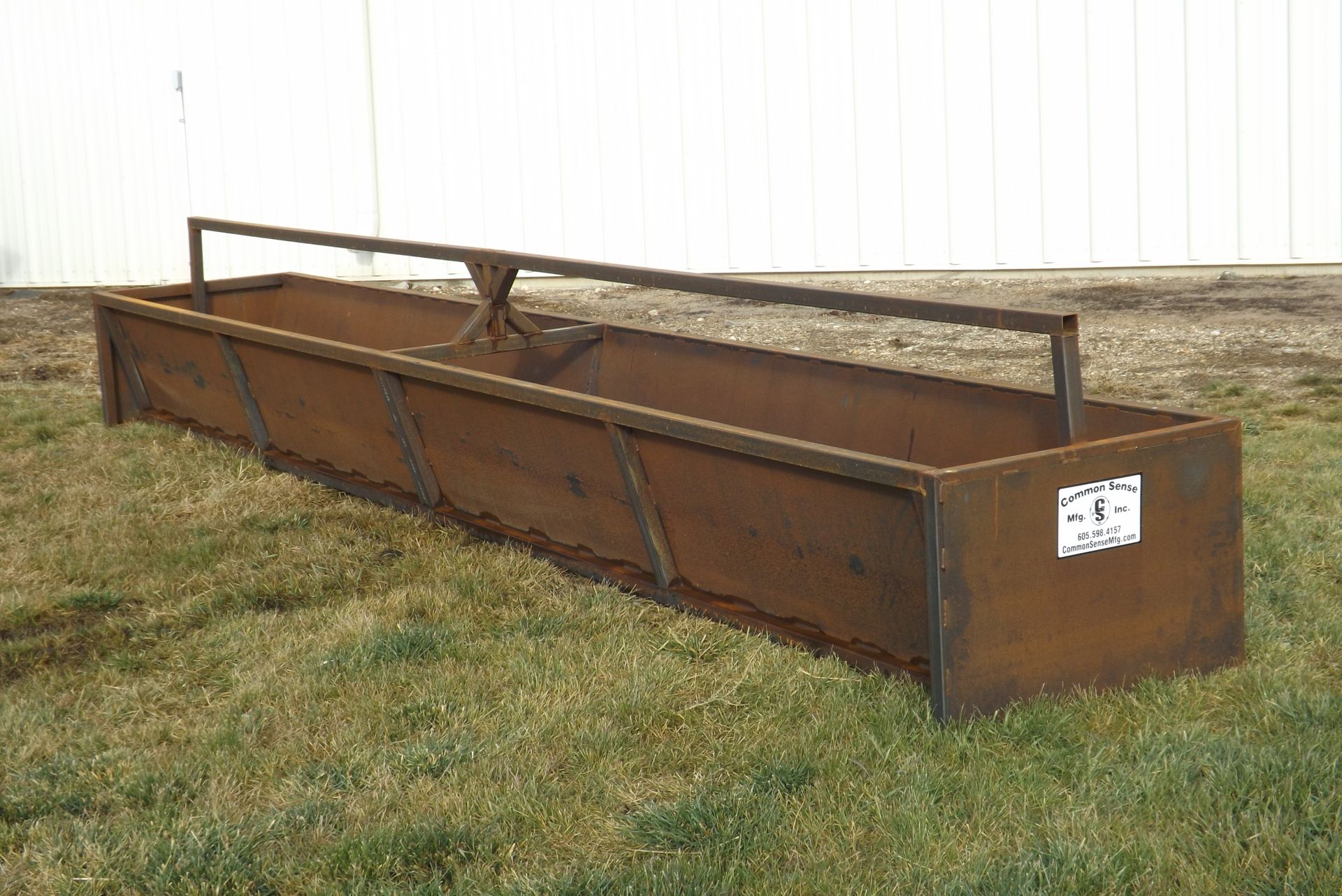

3'x20' Bottomless Feedbunk

Like our other products, this feed bunk is very heavy duty. It also has a much larger capacity than most bunks and works great for high roughage rations and bale processors. This size bunk works well with cows, bulls and other large animals. Per SDSU recommendations, this bunk is rated for 18-20 head. Also best to have animals be at least 750lbs You can move the bunk by grabbing it from the top with grapple forks. Since it is bottomless, when you lift it, it cleans itself out (no more shoveling). It is designed with a tapered toe kick to reduce aggression. Cross bars add strength and help prevent cows from being pushed into the bunk.

Dimensions:3' wide x 26" high x 20' long Also available in 10' long
Net Weight:1000 lbs.
Workmanship Warranty:1 year
Featuers & Benefits:Tapered toe kick reduces aggression
Specs:Frame made of 2" x 2" 11 gauge square tube; 14 guage sheeting; Crossbars 1 1/2" x 1 1/2" x 3/16" angle Iron

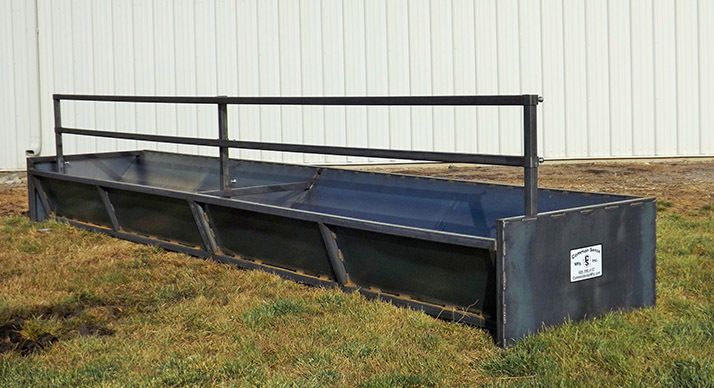

4'x20' Fenceline Bottomless Bunk

Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock. However, this version has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals. Due to the size of this bunk, animals should be above 750 lbs

Dimensions:4' wide x 26" high x 20' long. Also available 10' long
Net Weight:1050 lbs.
 Workmanship Warranty:1 year
Features & Benefits:Larger capacity than most feedbunks on the market
Tapered toe kick reduces aggression
Specs:Frame made of 2" x 2" 11 gauge square tube; 14 gauge sheeting; Feed height is 18" tall

3'x20' Fenceline Bottomless Bunk

Like our bottomless feed bunk, this bunk is large capacity and has a tapered toe kick to reduce aggression in livestock. However, this version has 3 vertical bars and two horizontal bars that can each be individually adjusted to accommodate for different sized animals. Due to the size of this bunk, animals should be above 750 lbs

Dimensions: 3' wide x 26" high x 20' long. Also available 10' long
Net Weight:1050 lbs.
 Workmanship Warranty:1 year
Features & Benefits:Larger capacity than most feedbunks on the market
Tapered toe kick reduces aggression
Specs:Frame made of 2" x 2" 11 gauge square tube; 14 gauge sheeting; Feed height is 18" tall
